The Steel Prop Tripod is a high-performance stabilization accessory engineered specifically for modern formwork and shoring systems. Its primary function is to secure steel props in a precise vertical alignment, effectively eliminating the risk of tipping or lateral movement during the critical phases of installation and concrete pouring. By providing a wide, reinforced base, it minimizes site hazards and ensures a safer working environment for construction teams.
Constructed from industrial-grade Q235 high-strength carbon steel, this tripod features a robust three-legged foldable design that guarantees optimal balance even on uneven ground surfaces. With its seamless compatibility with standard steel props and H20 beams, and a variety of durable surface treatments including hot-dip galvanizing and powder coating, it is an essential tool for contractors aiming to maximize construction accuracy, labor efficiency, and long-term equipment lifespan.
Detailed Parameters
| Material | Q235 High-Strength Carbon Steel | HS Code | 7308400000 |
|---|---|---|---|
| Surface Treatment | Galvanized / Powder Coating / Painted | Structure | Three-legged Foldable Design |
| Standard Height | 800mm | Fork Head Height | 330-340mm |
| Unit Weight | 4.5kg / 5kg / 5.5kg (Customizable) | Installation | Clamp-on or Fixed Support |
| Compatibility | Standard Steel Props & H20 Beams | Packing | Pallet / Bundle / Ton Bag / Poly-wood Box |
Key Advantages
Enhanced Site Safety
Prevents steel props from tipping or shifting during concrete pouring, significantly reducing workplace accidents.
Rapid Installation
A simple locking mechanism allows a single worker to deploy the tripod quickly without specialized tools.
Superior Stability
The three-legged structural design distributes loads evenly, ensuring balance on various ground surfaces.
High Compatibility
Seamlessly integrates with most standard steel props used in slab and beam formwork systems.
Corrosion Resistance
Available in galvanized or powder-coated finishes to withstand harsh outdoor weather conditions.
Space-Saving Design
Foldable construction allows for efficient transport and compact storage when not in use.

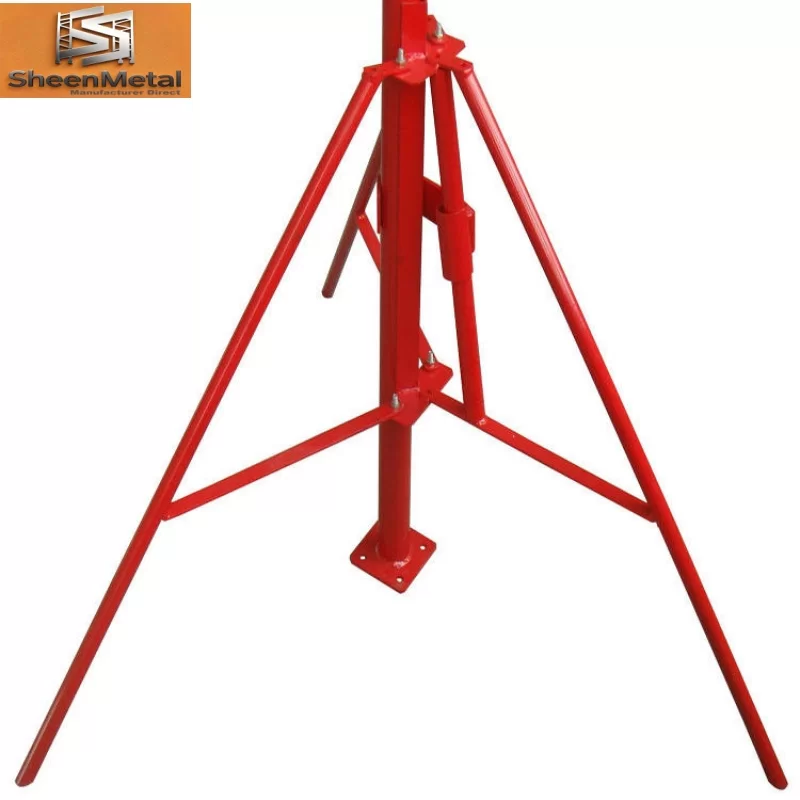

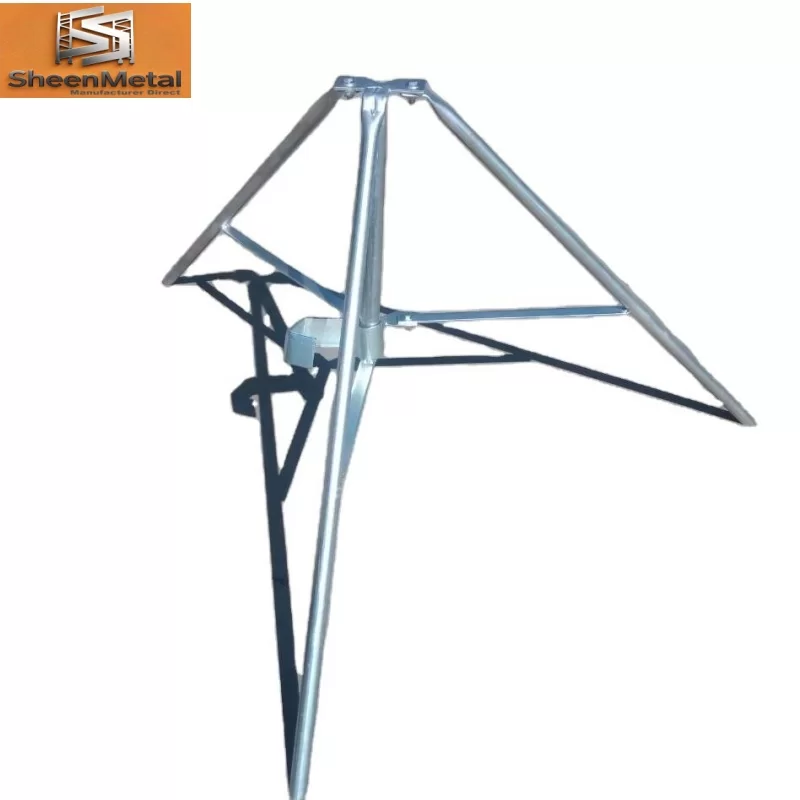

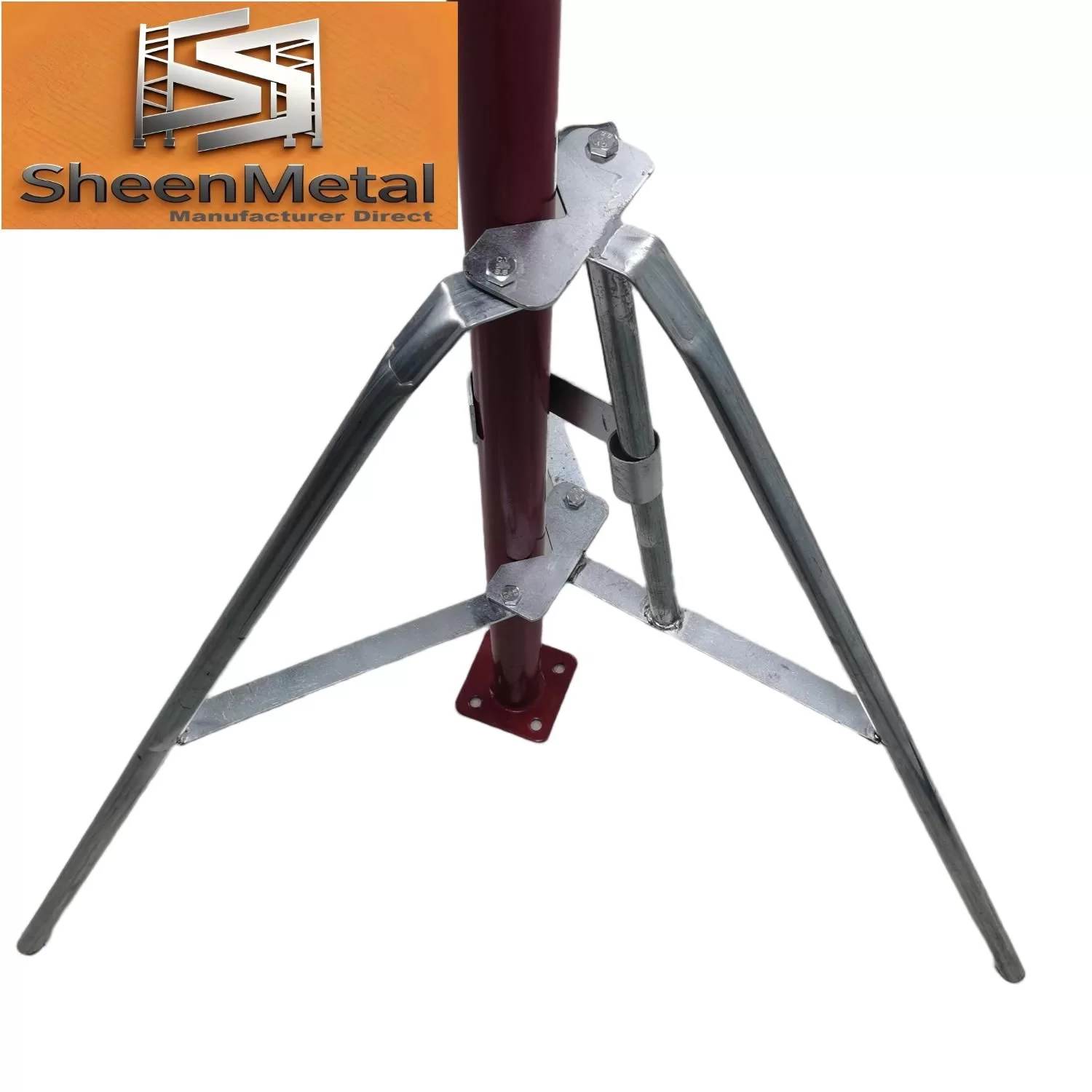

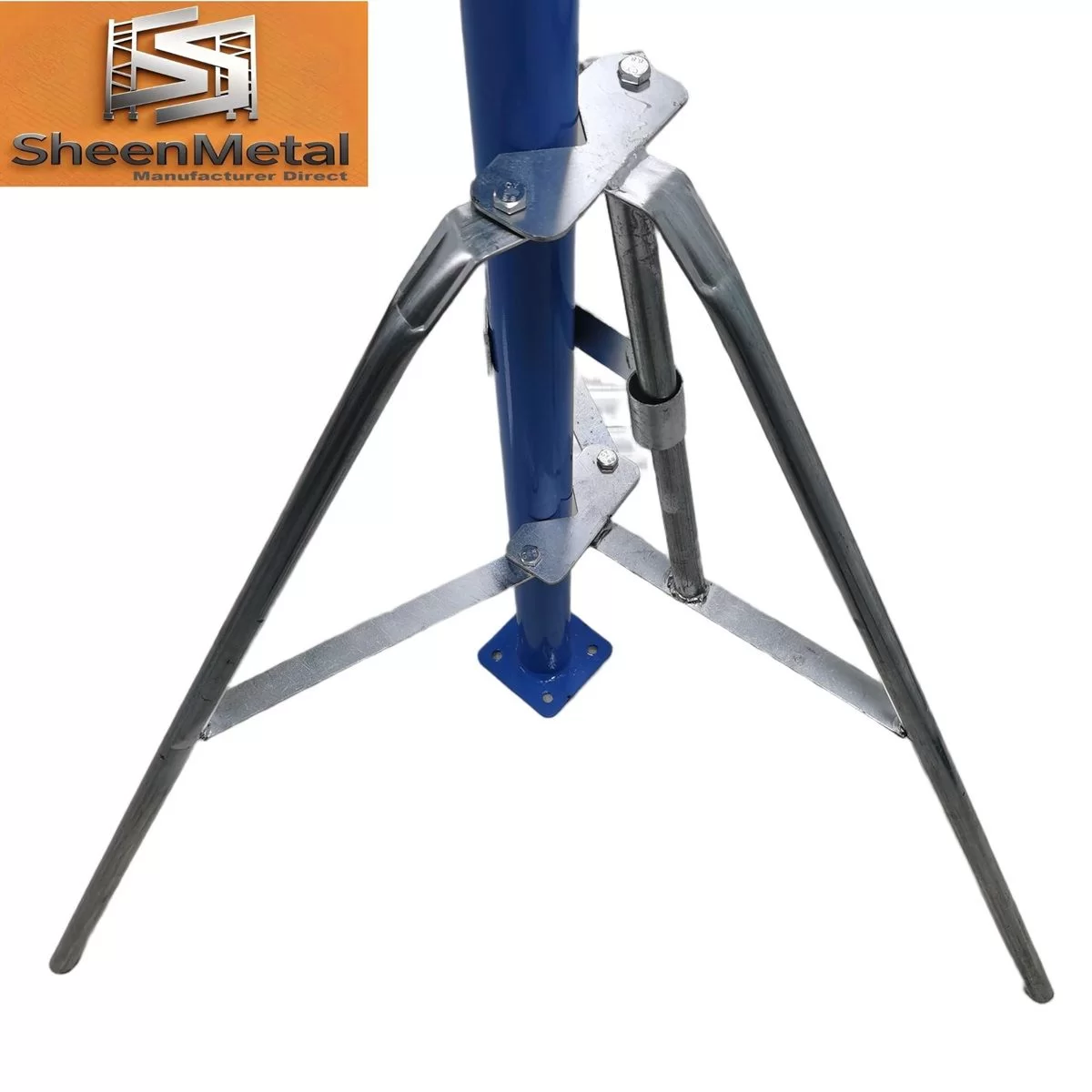

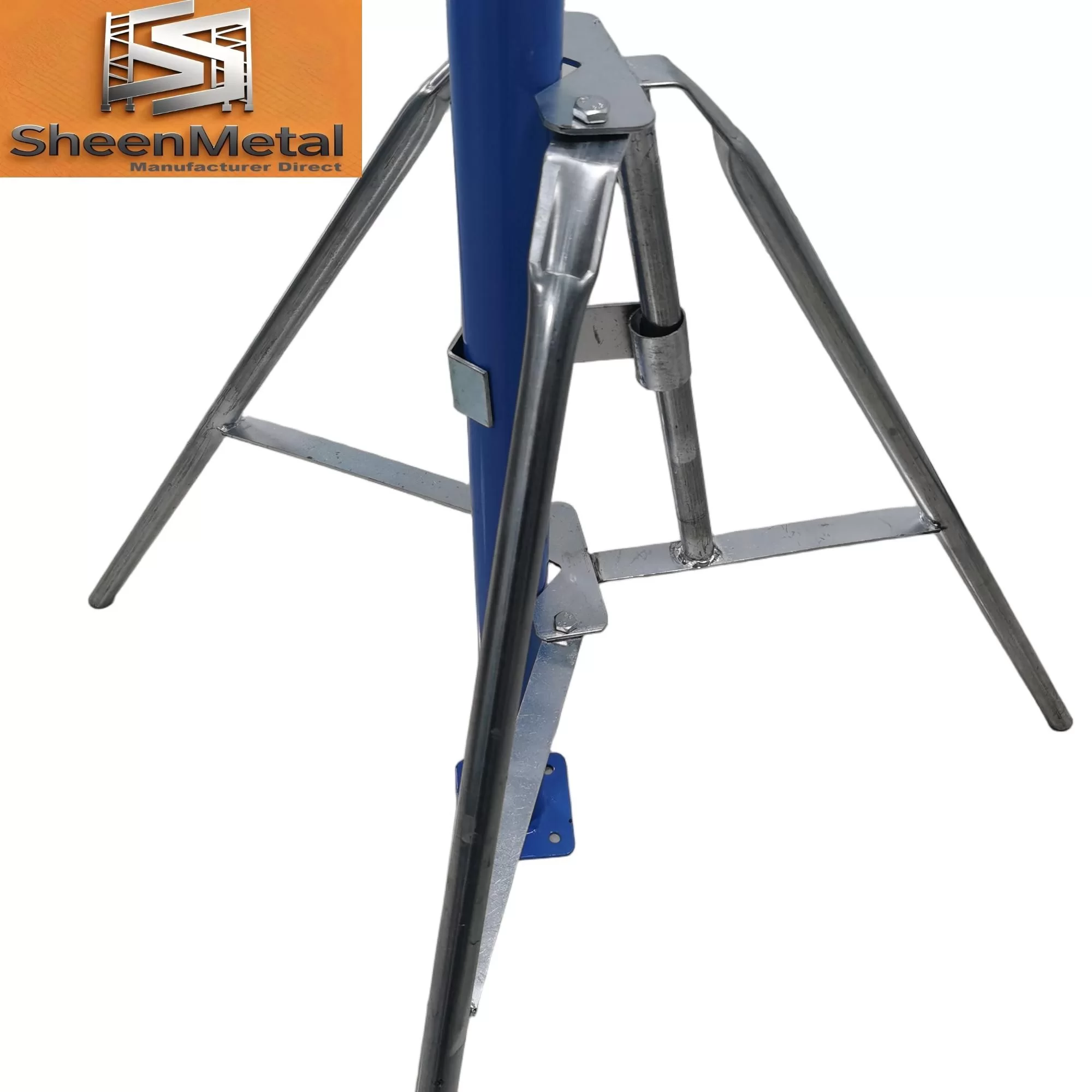

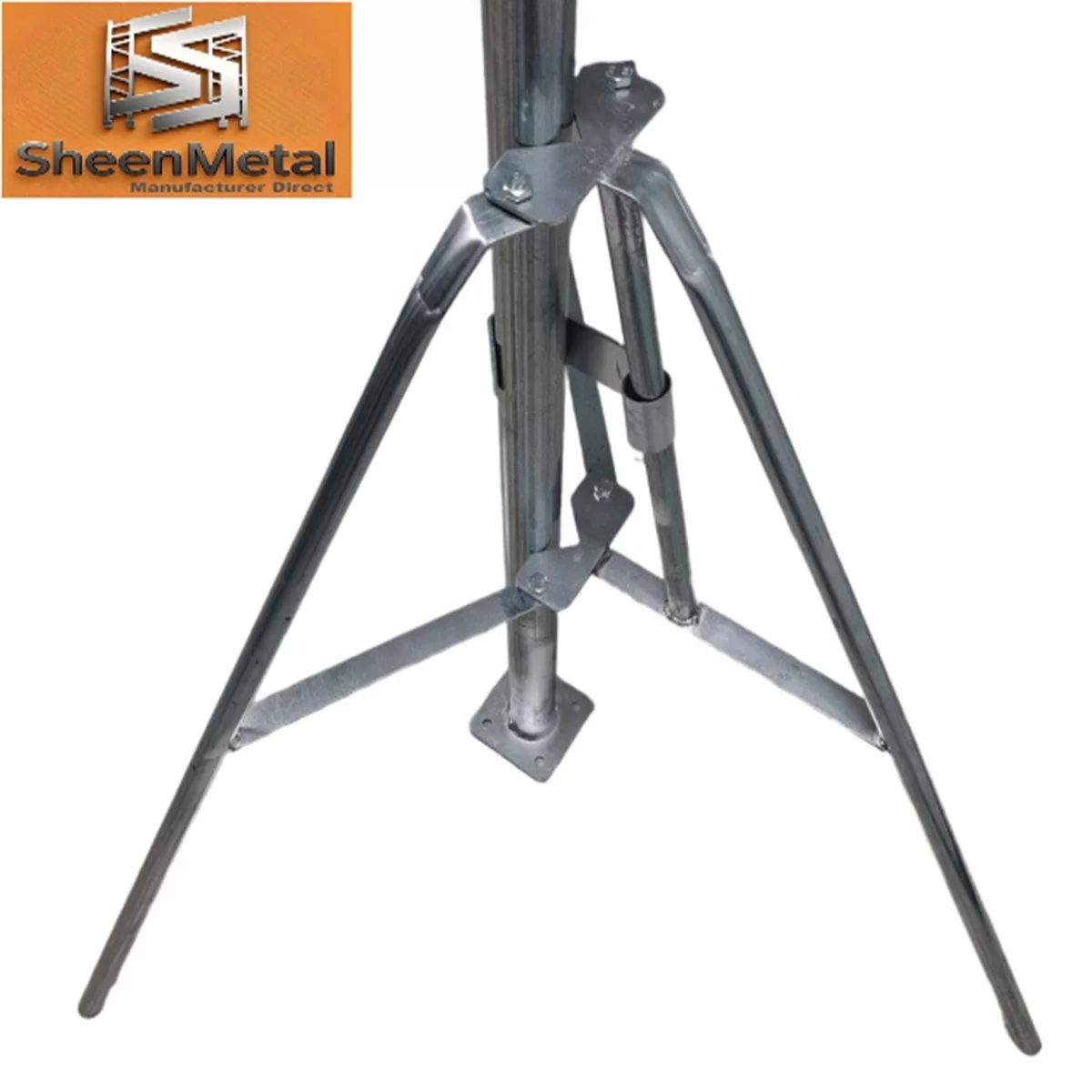

Product Gallery
Management Platforms
Quality Control
Strict adherence to Q235 steel standards and rigorous testing for load stability.
Custom Fabrication
Tailored weight and dimension options to meet specific project requirements.
Supply Chain Efficiency
Optimized packaging like Pallets and Ton bags for rapid global shipping.
Technical Support
Professional guidance on installation and compatibility with H20 beams.
Inventory Management
Consistent stock levels of standard sizes to ensure project deadlines are met.
Durability Assurance
Advanced hot-dip galvanizing processes to maximize service life on harsh sites.
Investment Return Comparison
| Comparison Feature | Standard Prop (No Tripod) | Prop with Tripod System |
|---|---|---|
| Installation Speed | Slow (Requires manual holding) | Fast (Self-stabilizing) |
| Safety Risk | High (Tipping hazard) | Low (Secure lateral support) |
| Labor Cost | Higher (More workers needed) | Lower (Single worker deployment) |
| Setup Accuracy | Variable (Prone to shifting) | High (Fixed vertical alignment) |
| Long-term ROI | Low (Higher accident risk) | High (Efficiency & Safety gains) |
Frequently Asked Questions
Its primary function is lateral stabilization. It maintains the prop’s vertical position and alignment during installation, preventing tipping before the formwork system is fully secured.
No, the tripod is designed for stability, not to carry structural vertical loads. The vertical load is borne by the steel prop itself.
We offer painted, powder-coated, and hot-dip galvanized finishes to protect the Q235 steel from rust in demanding construction environments.
Yes, our system includes specialized fork heads that securely hold H20 timber beams in position, preventing them from falling during setup.
The foldable design significantly reduces storage space on-site and lowers transportation costs by allowing more units to be packed per shipment.
Our tripods are manufactured from high-strength Q235 carbon steel, ensuring the necessary rigidity and durability for professional building construction.
